1 . The main products
The main products include ZIRNANO series zirconia beads (ceramic sand), diamond shaped zirconia sand,
zirconium silicate, and various zirconium products and their derivatives.
Manufacturing process: Melting method
Main ingredients:ZrO2 62-65% SiO224-29%
Al2O3 6-9%; Fe2O3
True density:3.85g/cm3
Bulk density:2.3g/cm3
Vivtorinox hardness:1000HV
2 . Particle size range:
B20 0.60-1.00mm B80 0.125-0.212mm
B30 0.425-0.71mm B120 0.063-0.15mm
B40 0.25-0.425mm B170 0.045-0.106mm
B60 0.15-0.30mm B205 0.045-0.075mm
Special specifications can be customized
3 . Product Characteristics
1 ) . Hgh efficiency
with high hardness, long service life and good elasticity, it is suitable for workpiece with complex
structures, without damage to workpiece surface, which can eliminate the stress and improve the
fatigue life of the workpiece.
2 ) . High cost-effective
Compared to glass beads it has higher cleanliness, which increase its service life by 30-50 times; Compared
to steal beads it has superior smoothness ,which increase its service life by 3-5 times. Durability of the
product helps to reduce refueling frequency and improve work efficiency.
3 ) . environment protection
During the sandblasting process, it is not easily broken and does not generate dust, thus eliminating the risk
of silicosis and being harmless to the human body.
4 . Application field and scope of application
1 ). 3C Products - Sandblasting Refining
The middle frame and built-in parts of alloy shells, computers, mobile phones, cameras, etc. -
sandblasting treatment cleans burrs, forming decorative or fine reflective surfaces with thin film
light on alloy workpieces such as mobile phones to achieve different reflection or matte effects.
2 ). Aerospace Industry - Shot Spraying
It is suitable for aeroengine parts, aircraft landing gears, gear transmissions, aeroengine blades,
and aircraft wing shot blasting.
3 ). Automotive industry - sandblasting treatment/blasting strengthening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers,
engine crankshaft sandblasting treatment/blasting enhancement.
4 ). Kitchen utensils - sandblasting treatment
Sandblasting of stainless steel tableware and kitchen utensils.
5 ). Medical equipment, golf head club, mechanical parts, bicycle rack, fishing reel, etc. -
sandblasting finishing / shot peening treatment
6 ) .The whole is sandblasted and polished, finished, the natural color of the metal is restored, the
visual effect and texture are enhanced, and the shot peening treatment is also carried out to
ove its service life.
5 . Application Equipment

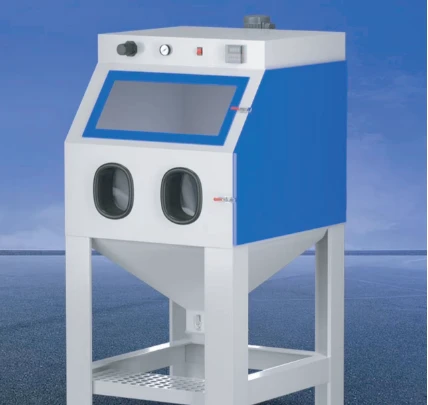

1 ).Manual sandblasting machine
Manual sandblasting machine: manual enclosed
sandblasting machine, manual trolley rotary
sandblasting machine, dual gun and dual station
manual sandblasting machine, manual/automatic
drum dual purpose sandblasting machine, manual
enclosed pressurized sandblasting machine, water
sand machine, etc
2 ). Automatic sandblasting machine
Automatic sandblasting machine: automatic sealed
pressure sandblasting machine, automatic conveyor
sandblasting machine, tracked sandblasting machine,
automatic rotary sandblasting machine, automatic rotary
continuous pressure sandblasting machine, automatic
conveyor sandblasting machine, crankshaft type cylinder
inner wall automatic sandblasting machine, ultra wide
automatic flat conveyor sandblasting machine, etc
3 ) . Open type sandblasting machine
Open sandblasting machine: single gun open
high-pressure sandblasting machine, double gun
open high-pressure sandblasting machine, four gun
open high-pressure sandblasting machine, etc
4 ) .Sandblasting machine room
Sandblasting room: pneumatic conveying sandblasting
room, mechanical conveying sandblasting room, etc
